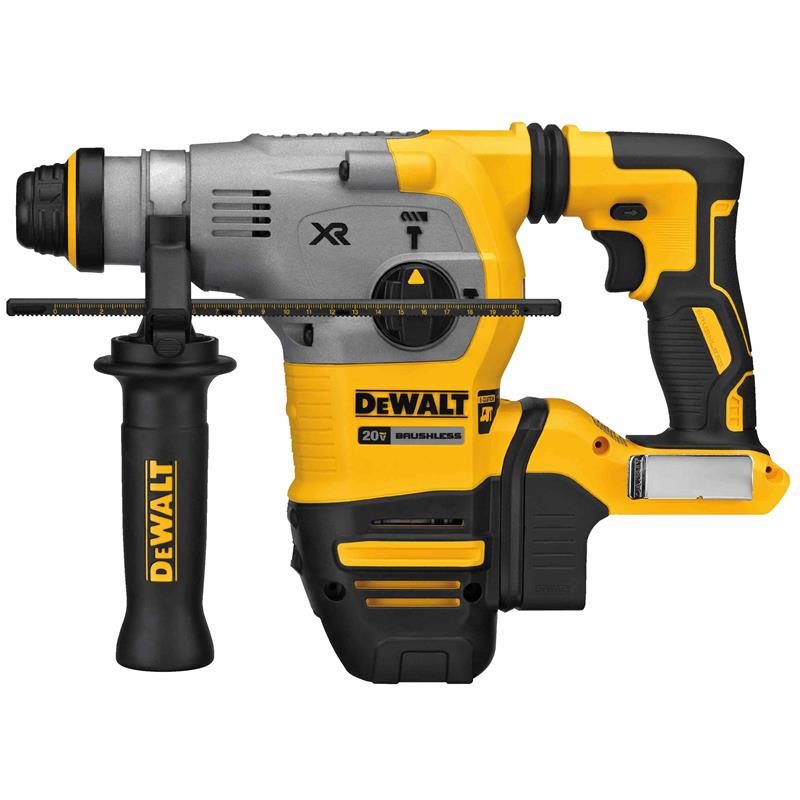

The DCH293B 20V Max XR Brushless 1-1/8" Rotary Hammer is a high-performance drill that is powered by a DEWALT brushless motor and durable German engineered mechanism that delivers 3.5 joules of impact energy. With its balanced design, SHOCKS® Active Vibration Control® technology and Extreme Run Time, this hammer is ideally suited for all day use and large diameter hole drilling, even in the hardest concrete. The patented E-Clutch ® system provides enhanced control to the user in a bind up situation and can help minimize sudden torque reaction compared to standard clutches.The DCH293 is Dust Extraction ready for the D25304DH.

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.

Details

Features & Specs

FEATURES

3.5J's of impact energy provides corded power without the cord
E-Clutch for maximum control in bind-up situations - A Perform and Protect feature.
SHOCKS - Active Vibration Control reduces vibration felt by the user at the handles. A Perform and Protect feature.
DEWALT built brushless motor for all day runtime and durability
Retractable utility hook for convenient hanging
German Engineered for Quality and Durability
Dust Management Ready. Use with D25304DH.

Specifications

Blows/Min 0 - 4480 bpm
Chargers/Batteries Sold Seperatley
Chipping Yes
Chisel Rotation true
Chuck Type SDS+
Clutch E-Clutch™ and Integral Mechanical Clutch
Dust Collection Ready true
E-Clutch(TM) Yes
Impact Energy 3.5 Joules
No Load Speed 0 - 1,000 rpm
Optimal Concrete Drilling 5/8" - 7/8" in
Power Tool Type Cordless
Switch Variable Speed
System 20V MAX*
Tool Length 13.78 in
Tool Weight 8.2 lbs
Vibration Control Yes - SHOCKS™
Vibration Measurement 7.5

Additional Information

Manufacturer: DeWalt
