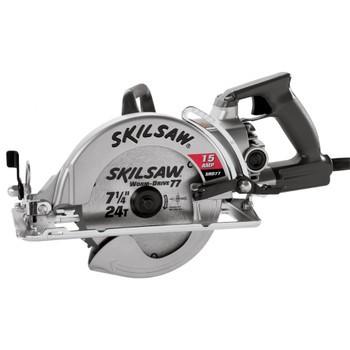

The new SHD77 Worm Drive Skilsaw continues the long tradition of quality, rugged durability and consistently exceptional cutting performance. The fiercely loyal Worm Drive customers can look forward to numerous improvements and new features on this saw. The SHD77 incorporates decades of on-the-job-site research and dedication to deliver the world's best cutting tool.

(click image to enlarge)

Quick Overview

Delivers 15 amps of power, giving users the power to rip through more lumber in less time
Upgraded motor contains new high-temperature wiring to handle the increased power
24-tooth carbide blade is designed for framing on the jobsite
A two position saw hook ensures safe rafter placement
Die-cast housing provides ultimate durability and longer saw life
Patented Anti-Snag lower guard provides smooth operation for small cut-off pieces
20 amp switch provides the user with maximum reliability
Durable steel foot is designed to endure jobsite abuse
Tough worm drive gearing lasts ten times longer than hypoid gears

Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications

Weight:	16.4 lbs.
Amperage:	15
Arbor Size:	5/8 in.
Bevel Capacity:	0 - 45 Degrees
Blade Diameter:	7-1/4 in.
Blade Position:	Left
Depth Of Cut at 45 Degrees:	1-15/16 in.
Depth of Cut at 90 Degrees:	2-3/8 in.
RPM:	4600
Voltage:	120V

Return To Top

7-1/4 in. Worm Drive Skilsaw - SHD77-RT

Saw Hook

Blade Wrench

Additional Information

Manufacturer: Skil

For More Information on the SHD77-RT 7-1/4 in. Worm Drive Skilsaw, [Click Here] to Link to Manufacturer Web Site
