Designed to provide economical and reliable protection from transients on DC power systems
Compact design fits into inverters and solar combiner boxes
Conveniently packaged for easy installation on DIN rail
Provides remote

Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications :-

Model	TDS502BR300DC	TDS502BR600DC	TDS503BR1000DC
Nominal Voltage - DC	300 V	600 V	1,000 V
Max Cont. OperatingVoltage, U	325 V DC	790 V DC	1100 V DC
Frequency	0-100 Hz
Technology	GDT MOV
Max Discharge Current, Imax	50 kA 8/20 µs
Nominal Discharge Current, In	20 kA 8/20 µs
Protection Modes	L-L, L-PE
Status	Change-over contact (Form C dry) 250V~/0.5A, max 1.5 mm² (#14AWG) connecting wire Mechanical flag

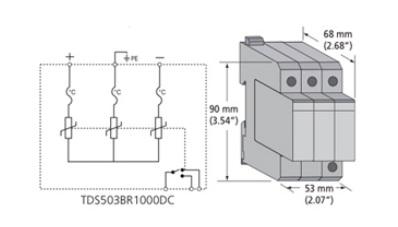

Dimensions HxDxW:mm (in)	90 x 68 x 35 (3.54 x 2.68 x 1.38)		90 x 68 x 53 (3.54 x 2.68 x 2.07)
Module Width	2 M		3 M
Enclosure	DIN 43 880, UL94V-0 thermoplastic, IP 20 (NEMA-1)
Connection	=25 mm² (#4AWG) stranded =35 mm² (#2AWG) solid
Mounting	35 mm top hat DIN rail
Temperature	-40°C to 80°C (-40°F to 176°F)
Humidity	0 % RH to 90 % RH
Approvals	TDS Replaceable module: CE, IEC 61643-1, UL 1449 Ed3 Recognized Component Type 2
Surge Rated to Meet	ANSI®/IEEE® C62.41-1991 Cat A, Cat B, Cat C ANSI®/IEEE® C62.41.2 Scenario II, Exposure 2, 50 kA 8/20 µs
Replacement Module	TDS150M277	TDS150M560	TDS150M277, TDS150M560
Weight: kg (lbs)	0.24 (0.53)	0.24 (0.53)	0.36 (0.78)

Additional Information

Manufacturer: Caddy

For More Information on the 1000 V Surge Protective Devices, [Click Here] to Link to Manufacturer Web Site
