718 Series U-Bolt

718-SUB

Globe Pipe Hanger Products

Designed as a support, guide, or anchor for heavy loads.

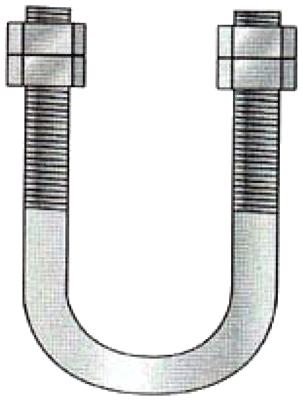

(click image to enlarge)
Quick Overview

  • Size Range : 1/2" Through 24" Pipe Sizes.
  • Material : Carbon Steel
  • Finish : Black.
  • Ordering : Specify Finish; Model Number And Pipe Size.
  • Function : Designed as a support, guide, or anchor for heavy loads.
  • Also Available in : Electro-Plated Zinc
Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.
Details

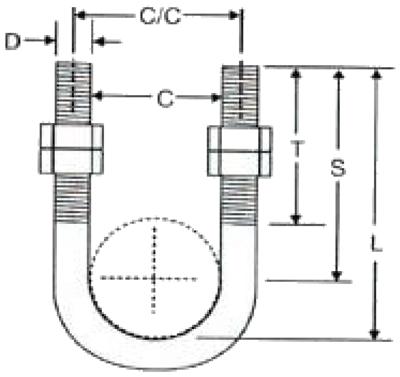

ItemPipe SizeDCC/CSMax. Recommended Load (At 650°F)Max. Recommended Load (At 750°F)
718 - 104 1/2 inches 1/4 inches 1 inches 1 1/8 inches 2 3/4 inches 1220 lbs 1090 lbs
718 - 106 3/4 inches 1/4 inches 1 1/8 inches 1 3/8 inches 2 3/4 inches 1220 lbs 1090 lbs
718 - 110 1 inches 1/4 inches 1 3/8 inches 1 5/8 inches 2 3/4 inches 1220 lbs 1090 lbs
718 - 112 1 1/4 inches 3/8 inches 1 5/8 inches 2 inches 2 7/8 inches 1220 lbs 1090 lbs
718 - 114 1 1/2 inches 3/8 inches 2 inches 2 3/8 inches 3 inches 1220 lbs 1090 lbs
718 - 120 2 inches 3/8 inches 2 1/2 inches 2 3/4 inches 3 1/4 inches 1220 lbs 1090 lbs
718 - 124 2 1/2 inches 1/2 inches 3 inches 3 1/2 inches 3 3/4 inches 2260 lbs 2020 lbs
718 - 130 3 inches 1/2 inches 3 1/2 inches 4 inches 4 inches 2260 lbs 2020 lbs
718 - 134 3 1/2 inches 1/2 inches 4 inches 4 1/2 inches 4 1/4 inches 2260 lbs 2020 lbs
718 - 140 4 inches 1/2 inches 4 1/2 inches 5 inches 4 1/2 inches 2260 lbs 2020 lbs
718 - 150 5 inches 1/2 inches 5 5/8 inches 6 1/8 inches 5 inches 2260 lbs 2020 lbs
718 - 160 6 inches 5/8 inches 6 3/4 inches 7 3/8 inches 6 1/8 inches 3620 lbs 3230 lbs
718 - 180 8 inches 5/8 inches 8 3/4 inches 9 3/8 inches 7 1/8 inches 3620 lbs 3230 lbs
718 - 1100 10 inches 3/4 inches 10 7/8 inches 11 5/8 inches 8 3/8 inches 5420 lbs 4830 lbs
718 - 1120 12 inches 7/8 inches 12 7/8 inches 13 3/4 inches 9 5/8 inches 7540 lbs 6730 lbs
718 - 1140 14 inches 7/8 inches 14 1/8 inches 15 inches 10 1/4 inches 7540 lbs 6730 lbs
718 - 1160 16 inches 7/8 inches 16 1/8 inches 17 inches 11 1/4 inches 7540 lbs 6730 lbs
718 - 1180 18 inches 1 inches 18 1/8 inches 19 1/8 inches 12 5/8 inches 9920 lbs 8850 lbs
718 - 1200 20 inches 1 inches 20 1/8 inches 21 1/8 inches 13 5/8 inches 9920 lbs 8850 lbs
718 - 1240 24 inches 1 inches 24 1/8 inches 25 1/8 inches 15 5/8 inches 9920 lbs 8850 lbs
Additional Information
Manufacturer: Globe Pipe Hanger Products
For More Information on the 718 Series U-Bolt, [Click Here] to Link to Manufacturer Web Site
