Size Range : 1/2" Through 4" Pipe Sizes.
Material : Low Carbon Steel.
Finish : Black.
Ordering : Specify Finish; Model Number And Pipe Size.
Approvals : Complies With Federal Specifications A-A-1192A (Type 26) And Manufactures' Standardization Society Sp-69 (Type 26).

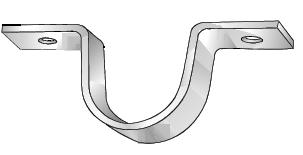

Function : Designed To Hold Piping Flush With The Adjacent Surface. Sizes 1/2" Through 2" Are Furnished With Two Screw Holes. Sizes 2 1/2" Through 4" Are Furnished With Four Screw Holes.

Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications
Material	Low Carbon Steel
Finish	Black
Pipe Size	2 1/2 inches
A	6 inches
B	2 7/8 inches
C	1 1/8 inches
D	5 inches
Material Thickness	3 gauge
Material Size	1 1/4 inches
Max. Recommended Load	500 lbs
Approx. Weight per 100 (pcs.)	89 lbs
Carton Quantity	25

Additional Information

Manufacturer: Globe Pipe Hanger Products

For More Information on the 507 Series Short Pipe Strap - 507-124, [Click Here] to Link to Manufacturer Web Site
