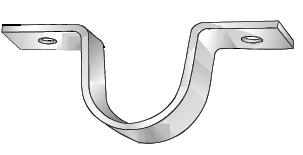

507 Series Short Pipe Strap

507-SSPS

Globe Pipe Hanger Products

Designed to hold piping flush with the adjacent surface.
(click image to enlarge)
Quick Overview

  • Size Range : 1/2" Through 4" Pipe Sizes.
  • Material : Low Carbon Steel.
  • Finish : Black.
  • Ordering : Specify Finish; Model Number And Pipe Size.
  • Approvals : Complies With Federal Specifications A-A-1192A (Type 26) And Manufactures' Standardization Society Sp-69 (Type 26).
  • Function : Designed To Hold Piping Flush With The Adjacent Surface. Sizes 1/2" Through 2" Are Furnished With Two Screw Holes. Sizes 2 1/2" Through 4" Are Furnished With Four Screw Holes.
Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.
Details


ItemPipe SizeABMaterial ThicknessMaterial SizeMax. Recommended Load
507 - 104 1/2 inches 3 7/8 inches 15/16 inches 11 gauge 1 1/4 inches 300 lbs
507 - 106 3/4 inches 4 inches 1 1/8 inches 11 gauge 1 1/4 inches 300 lbs
507- 110 1 inches 4 1/4 inches 1 3/8 inches 11 gauge 1 1/4 inches 300 lbs
507- 112 1 1/4 inches 4 5/8 inches 1 5/8 inches 11 gauge 1 1/4 inches 300 lbs
507- 114 1 1/2 inches 5 inches 2 inches 11 gauge 1 1/4 inches 300 lbs
507- 120 2 inches 5 1/2 inches 2 1/4 inches 11 gauge 1 1/4 inches 300 lbs
507 - 124 2 1/2 inches 6 inches 2 7/8 inches 3 gauge 1 1/4 inches 500 lbs
507 - 130 3 inches 6 5/8 inches 3 1/2 inches 3 gauge 1 1/4 inches 500 lbs
507 - 134 3 1/2 inches 7 1/8 inches 4 inches 3 gauge 1 1/4 inches 500 lbs
507 - 140 4 inches 8 3/8 inches 4 1/2 inches 3 gauge 1 1/2 inches 500 lbs
Additional Information
Manufacturer: Globe Pipe Hanger Products
For More Information on the 507 Series Short Pipe Strap, [Click Here] to Link to Manufacturer Web Site
