246 Series Malleable Beam Clamp

246

Globe Pipe Hanger Products

2 3/8" to 7" Flange Width. 3/8" to 7/8" rod size.

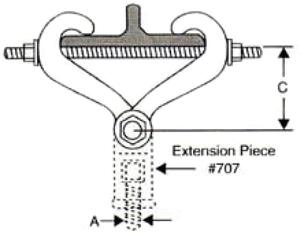

(click image to enlarge)
Quick Overview

    Size Range:
    2 3/8" To 7" Flange Width. 3/8" To 7/8" Rod Size.

    Material:
    Malleable Iron Jaw, Carbon Steel Hardware.

    Finish:
    Black.

    Ordering:
    Specify Figure Number If Extension Piece Is Required, Order A Figure 707 Extension Piece Separately

Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.
Details

Size Range:
2 3/8" To 7" Flange Width. 3/8" To 7/8" Rod Size.

Material:
Malleable Iron Jaw, Carbon Steel Hardware.

Finish:
Black.

Ordering:
Specify Figure Number If Extension Piece Is Required, Order A Figure 707 Extension Piece Separately

Approvals:
Compiles With Mss Sp-69 (Type 30)

Function:
Design For Attaching A Hanger Rod To The Bottom Flange Of A Beam. Flange Thickness Not To Exceed 0.60".



Specifications
MaterialMalleable Iron Jaw, Carbon Steel Hardware
FinishBlack
Max. Rod Size "A"7/8 inches
Flange Width2 3/8 inches
3 inches
4 inches
5 inches
6 inches
7 inches
Rod Take-out "C"1 7/8 inches
2 9/16 inches
2 15/16 inches
3 5/16 inches
3 7/16 inches
3 1/2 inches
Bolt Diameter7/16 inches
Max. Recommended Load1365 lbs
Approx. Weight per 100 (pcs.)249 lbs
Additional Information
Manufacturer: Globe Pipe Hanger Products
For More Information on the 246 Series Malleable Beam Clamp, [Click Here] to Link to Manufacturer Web Site
