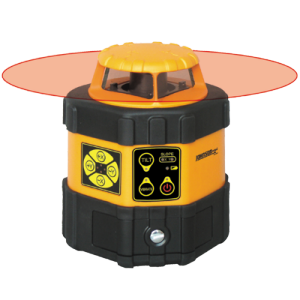

Johnson's 40-6537 Electronic Self-Leveling Horizontal Rotary Laser Level designed for outdoor construction - carpenters, fence installers, landscapers love the accurate leveling it provides. Self leveling horizontally. Still deciding?

(click image to enlarge)

Quick Overview

Leveling Method: Automatic (Electronic)

Laser Wavelength: 635nm¡À10nm

Laser Classification: Class IIIa

Maximum Power Output: ¡Ü5mW

Accuracy: ¡À1/16"/100ft. (¡À1.5mm/30m)

Interior Range: N/A

Exterior Range: Up to 2000` diameter (600m) with detector

Remote Range: Up to 200` diameter (60m) with remote

Slope: ¡À8¡ã

Auto-Leveling Range: ¡À5¡ã

Grade Setting: N/A

Power Supply: Rechargeable NiMH battery pack, or 6V adapter (included), 6 "AA" alkaline batteries (not included)

Battery Life: Approximately 17 hours with rechargeable battery pack; 8-17 hours with alkaline batteries

Dimensions: 5.512" x 5.512" 7.480" (140 x 140 x 190mm)

Weight: 3.968lbs. (1.8kg)

Working Temperature: 14¡ãF to 113¡ãF (-10¡ãC to +45¡ãC)

Center Screw Thread: 5/8"-11

Scanning Modes: N/A

Rotation Speeds: 800 rpm

IP Protection Class: 66

Warranty: 3 Years

Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.

Details

Electronic self-leveling and designed for outdoor use

Electronically-controlled dual slope feature

Reinforced metal roof and glass enclosed beacon

Electronic beam shield to turn the laser beam off in one to three quadrants

Vibrate mode ignores slight movements as in windy conditions

Visual and audible alarms when beyond leveling range

Height of Instrument/Tilt alarm function ensures product accuracy

Additional Information

Manufacturer: Johnson Level & Tool Co.

For More Information on the Electronic Self Leveling Horizontal Rotary Laser Level, [Click Here] to Link to Manufacturer Web Site
