T412 12' Type IAA Aluminum Twin Ladder

T412

Werner Co.

The aluminium Multi-Use Twin Stepladder T400 series has a duty rating of 375 pounds per side making these ladders ideal for one or two-person jobs. The tops are made of heavy gauge extruded aluminum, and the steps are connected with a solid double riveted construction. The extra wide TRACTION-TRED steps are slip resistant. The bottom steps are braced with full U channel knee braces.

(click image to enlarge)
Quick Overview
    Performance Overview
    StyleSizeReach HeightLoad CapacityType
    Twin12'16'375 lbs.Type IAA Duty Rating

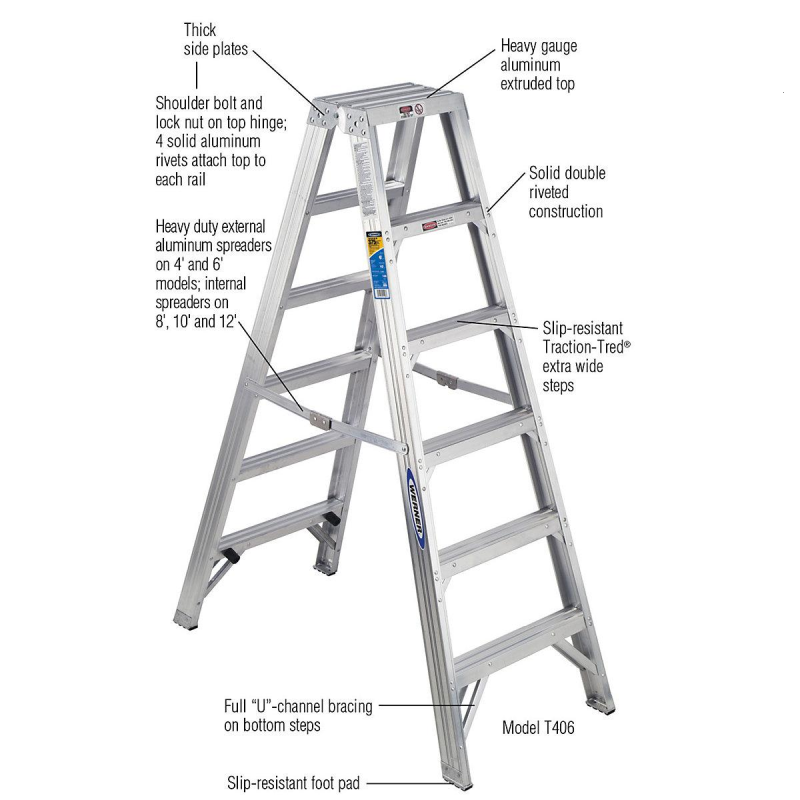

    Features include:

  • Thick side plates
  • Heavy gauge aluminum extruded top
  • Shoulder bolt and lock nut on top hinge;4 solid aluminum rivets attach top to each rail
  • Solid double riveted construction
  • Heavy duty external aluminum spreaders on 4' and 6' models; internal spreaders on 8' 10' and 12'
  • Slip-resistant TRACTION-TRED® extra wide steps
  • Full “U”-channel bracing on bottom steps
  • Slip-resistant foot pad
  • Design for one or two-person jobs
  • Maximum load per side, including person and materials, shall not exceed duty rating of ladder
Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.
Details

Dimensions

  • Top Dimension: 8-1/4" x 14"
  • Front Rails Dimension: 3-1/8"
  • Front Flange Dimension: 1-1/8"
  • Rear Rails Dimension: 3-1/8"
  • Rear Flange Dimension: 1-1/8"
  • Steps Dimension: 3"


  • Specifications

  • Size: 12'
  • Reach Height: 16'
  • Max. Standing Height: 9'7"
  • Load Capacity: 375 lbs.
  • Type: Type IAA Duty Rating
  • Performance Rating: 5 Star
  • Material: Aluminum
  • Approx. Width: 35-1/4"
  • Approx. Spread: 92-1/4"
  • With Pail Shelf: No
  • Spreader Material: Aluminum
  • Certifications: ANSI A14.2 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 25
  • Approx. Shipping Wt. Lbs.: 69


  • Additional T400 Series Models:
    Model No.SizeReach HeightMax. Standing HeightApprox. WidthApprox. SpreadApprox. Cu. Ft. Per Unit
    T4044'8'1'11"21-1/4"36-1/4"5
    T4066'10'3'10"24-3/4"50-1/4"8.8
    T4088'12'5'9"28-1/4"64-1/4"13.3
    T41010'14'7'8"31-3/4"78-1/4"18.7
    T41212'16'9'7"35-1/4"92-1/4"25
    Additional Information
    Manufacturer: Werner Co.
