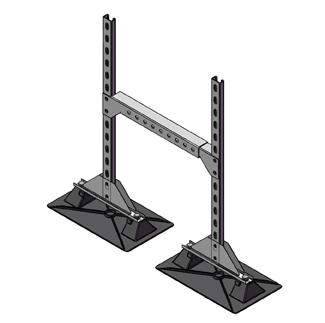

A frame constructed of strut and MIRO's patented bases are used to support duct on flat roofs. Unique design allows a sturdy support without penetrating or causing damage to the roof membrane. The 6-DSA are manufactured in a 12 gauge telescoping design for maximum adjustability in length and height. The duct support base is made of stainless steel, hot dip galvanized steel or polycarbonate plastic and all other metal parts are made of hot-dip galvanized.

(click image to enlarge)

Quick Overview

Base Material: Polycarbonate, Galvanized, Stainless

Size: Base footprint is 9" x 15.25" polycarbonate or 8" x 14" stainless steel or hot dip galvanized. Can adjust in height to support duct from a low of 10" to a high of 24" in elevation above the roof membrane. Can adjust in width from a minimum width of 18" to 24" between strut assembly.

Max Load Weight: Maximum load weight not to exceed 150 lbs. per duct support or 75 lbs. on each base or 20" spiral duct.

Spacing: Manufacturer's recommended spacing is not to exceed 8 foot centers depending upon the load. Do not exceed load weight.

Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Miro Industries, Inc.

For More Information on the 6-DSA Duct and Cable Tray Supports Model No. 6-DSA, [Click Here] to Link to Manufacturer Web Site
