Mech Support-LD Mechanical Unit Supports Model No. Mech Support-LD

Mech Support-LD

Miro Industries, Inc.

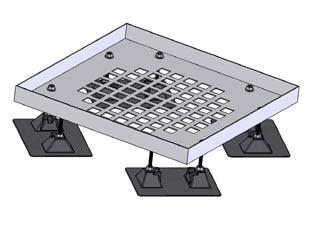

MIRO Mechanical Unit Supports are supports to elevate rooftop mechanical units such as air conditioning or other devices. The Mechanical Unit Supports are designed so that the mechanical units rest in heavy-duty corner or side supports which are connected to bases designed with MIRO technology to protect the roof membrane. The Mechanical Unit Supports are adjustable in that the strut can be selected to the appropriate height and there is provided an additional threaded rod which allows fine adjustment to level the roof-top units. All metal pieces are made out of hot-dip galvanized steel for outdoor weathering protection. The MIRO Mechanical Unit Support consists of (1) four MIRO designed bases with gently curved edges to protect the roof membrane and to distribute the weight over the maximum roof surface, (2) hot-dip galvanized sheet and all-thread height adjustable column.
(click image to enlarge)
Quick Overview

  • Base Material: Polycarbonate

  • Size: The hot-dip galvanized sheet for each Mechanical Unit Support comes in 18" by 18", 24" by 24", 24" by 30", 30" by 30" and 36" by 36". Custom units can be provided.

  • Max Load Weight: Maximum load weight is equivalent to and is part of the maximum roof top bearing load which MIRO has designed for its bases. MIRO recommends such loading not exceed two pounds per square inch.

  • Spacing: The Mechanical Unit Support should be spaced at intervals so as to allow proper installation of the mechanical units or devices.
Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.
Additional Information
Manufacturer: Miro Industries, Inc.
For More Information on the Mech Support-LD Mechanical Unit Supports Model No. Mech Support-LD, [Click Here] to Link to Manufacturer Web Site
