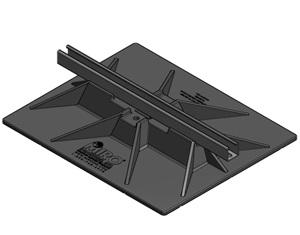

A pipestand with a strut and clamp pipe support system used for ganging roof mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a 24" length of strut which is mounted on the base. The pipes can then be fastened by using typical clamps locked to the strut. The pipe support base is made of polycarbonate resin; and the strut is made of hot-dip galvanized steel.

(click image to enlarge)

Quick Overview

Base Material: Polycarbonate

Size: The deck base is 19" x 23", has maximum bar length of 24".

Max Pipe Clearance: The 24-Base Strut-4 is a fixed height of 4-1/2" in elevation from bottom of pipe support.

Max Load Weight: Maximum load weight not to exceed 440 lbs. per base.

Spacing: Manufacturer's recommended spacing should not exceed 10 foot centers depending upon the load.

Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Miro Industries, Inc.

For More Information on the Conduit Supports Model No. 24-Base-Strut-4, [Click Here] to Link to Manufacturer Web Site
