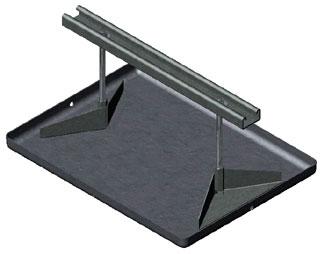

A pipestand with a strut and clamp pipe support system used for ganging roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a 16" length of strut which is mounted on the base. The pipes can then be fastened by using typical clamps locked to the strut.

(click image to enlarge)

Quick Overview

Base Material: Galvanized

Size: The deck base is 12" by 16", has a maximum bar length of 16".

Max Pipe Clearance: Can adjust in height from a low of 2.5"to a high of 7.5" in elevation above the roof membrane.

Max Load Weight: Maximum load weight may not exceed 150 lbs. per pipestand.

Spacing: Manufacturers recommended spacing is not to exceed 10 foot centers depending upon the load. Do not exceed 150 lbs. load weight

Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Miro Industries, Inc.

For More Information on the Conduit Supports Model No. 16-Base-Strut-7 Galvanized, [Click Here] to Link to Manufacturer Web Site
