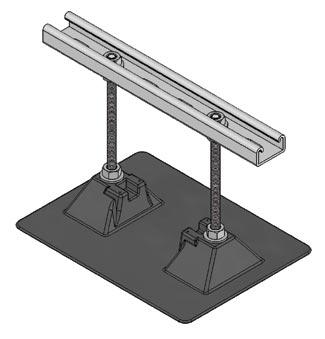

A pipe support with "strut" used to support roof-mounted electrical conduit, solar piping, gas pipes, and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a strut system which is made of hot-dip galvanized steel. The pipe support base is made of polycarbonate resin, and all other metal parts are made of hot-dip galvanized or stainless steel. Pipestand will accommodate up to 2.5" pipe (inside diameter) or up to 3" (outside diameter) pipes.

(click image to enlarge)

Quick Overview

Base Material: Polycarbonate

Size: The deck base is 7.5" by 10" and the strut is 1 5/8" by 13/16" strut and 12" long.

Max Pipe Size: 2.5" inside diameter and 3" outside diameter.

Max Pipe Clearance: 2.5-Conduit Support-7 has a maximum pipe clearance of 7" above the roof membrane.

Max Load Weight: Maximum load weight may not exceed 115 lbs. per pipestand.

Spacing: Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load.

Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Miro Industries, Inc.

For More Information on the Conduit Supports Model No. 2.5-CS-7, [Click Here] to Link to Manufacturer Web Site
