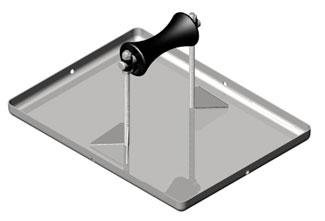

A "roller-bearing" pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating roller which is made of a stainless steel rod and a polycarbonate resin roller. The pipe support base and all other metal parts are made of stainless steel. Pipestand will accommodate up to 4" pipe (inside diameter) or up to 5" (outside diameter) pipes.

(click image to enlarge)

Quick Overview

Base Material: Stainless

Size: The deck base is 12" by 16", has a maximum cradle width of 5-1/2".

Max Pipe Size: 4" inside diameter and 5" outside diameter.

Max Pipe Clearance: Can adjust in height from a low of 3 inches to a high of 7 inches in elevation above the roof membrane.

Max Load Weight: Maximum load weight may not exceed 349 lbs. per pipestand.

Spacing: Manufacturer's recommended spacing should not exceed 10 foot centers depending upon the load.

Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Miro Industries, Inc.

For More Information on the Pipe Support Model No. 5-RAH-7 - Stainless Steel, [Click Here] to Link to Manufacturer Web Site
