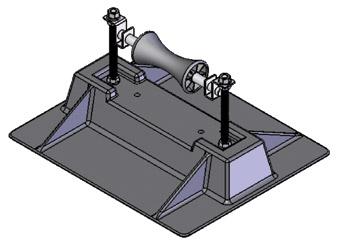

A "roller bearing" pipe support used to support roof mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating roller which is a 304 stainless steel rod and a polycarbonate resin roller. The pipe support base is made of sturdy polycarbonate resin, the roller is polycarbonate and all metal parts are made of stainless steel. Pipestand will accommodate up to 6" inside diameter pipe or up to 8.5" outside diameter pipes.

(click image to enlarge)

Quick Overview

Base Material: Polycarbonate

Size: The deck is 16" x 18" and has a maximum cradle width of 8.5".

Max Pipe Size: 6" inside diameter and 8.5 outside diameter.

Max Pipe Clearance: Can adjust in height from a low of 4" to a high of 7" in elevation above the roof membrane.

Max Load Weight: Maximum load weight may not exceed 440 lbs. per pipestand

Spacing: Manufacturer's recommended spacing is not to exceed 10 foot centers depending on the load.

Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Miro Industries, Inc.

For More Information on the Pipe Support Model No. 6-RAH-7 - Polycarbonate, [Click Here] to Link to Manufacturer Web Site
