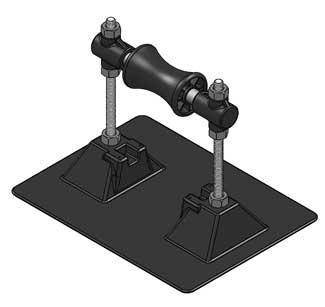

A "roller-bearing" pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating polycarbonate resin roller rod and roller. The pipe support base is made of polycarbonate resin, the supporting all-thread and all metal parts are made of stainless steel. Pipestand will accommodate up to 3" pipe (inside diameter) or up to 3 3/4" (outside diameter) pipes.

(click image to enlarge)

Quick Overview

Base Material: Polycarbonate

Size: The deck base is 7.50" by 10" and has a maximum cradle width of 4".

Max Pipe Size: 3" inside diameter and 3.75" outside diameter.

Max Pipe Clearance: The 3-RAH can adjust in height from a low of 3.5" to a high of 7" in elevation above the roof membrane.

Max Load Weight: Maximum load weight may not exceed 115 lbs. per pipestand.

Spacing: Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load.

Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Miro Industries, Inc.

For More Information on the Pipe Support Model No. 3-RAH-7 - Polycarbonate, [Click Here] to Link to Manufacturer Web Site
