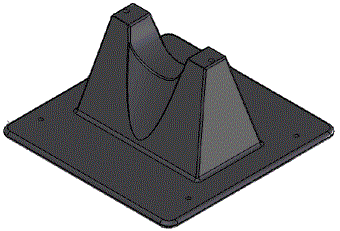

A pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest in a 'U' shaped cradle situated in a polycarbonate resin seat. Each pipe stand will accommodate up to 1.5" inside diameter pipes. The maximum outside diameter of pipe which can be cradled in the Model 1.5 support is 1.9".

(click image to enlarge)

Quick Overview

Base Material: Polycarbonate

Size: The deck base is 6" square, the stacking platform is 2" high, the top of the "U" cradle is 3" high, and the maximum inside width of the cradle is 1.95".

Max Pipe Size: 1-1/2" inside diameter and 1-9/10" outside diameter.

Max Pipe Clearance: Pipes supported one pipestand high will have a clearance of 2" over the roof.

Max Load Weight: Maximum load weight may not exceed 48 lbs. per pipestand.

Spacing: Manufacturer's recommended spacing is not to exceed 10 feet centers depending upon the load.

Interested in this item or want more information?
Monday - Friday 6:30am - 5:00pm
Phone: (619) 295-6100
Email: danv@jobsitesupplyco.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Miro Industries, Inc.

For More Information on the Pipe Support Model 1.5, [Click Here] to Link to Manufacturer Web Site
